12" 9-32V | 47W

22" 9-32V | 95W

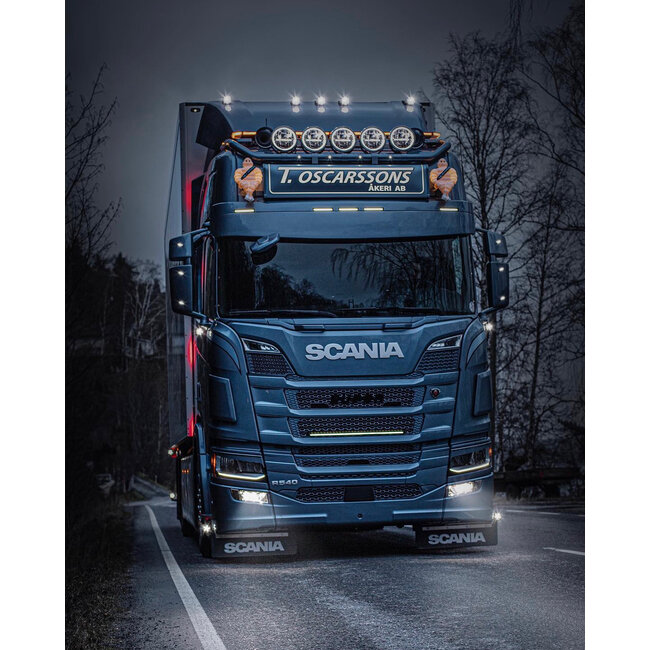

32" 9-32V | 146W (Picture Volvo & Scania)

42" 9-32V | 199W

50" 9-32V | 241W

• Type of lamp LED
• Voltage (V DC) 9-32V DC
• 1 LUX @ m 425
• IP-class IP67/69K
• Colour housing Black
• Colour lens Clear
• Colour LED´s White
• Beam pattern Combo
• Position light Yes white and orange
• Connection DT-4
• Cable length (mm) 500
• Material bracket Stainless steel
• Material housing/chassi Aluminium
• Material lens Polycarbonate
• Height including bracket (mm) 65
• Operating temperature -20°C – +45°C
• ADR-approved No
• E-approved  Yes
• According to regulation ECE R112
• Reference number 37.5
• EMC ECE R10
